IO-Link Developer Kits – Reference Designs, Starter Kits, and Built-In Solutions
TEConcept IO-Link Developer Kits combine validated evaluation boards from leading semiconductor partners with the pre-installed TEConcept IO-Link Stack—ready for use as a development platform, test platform, or device demonstrator.
Whether you are developing a new IO-Link solution or testing existing components, the Developer Kits and reference designs provided by our partners include everything you need to get started. This shortens the path from selecting the right chip to building a functional IO-Link prototype—compliant with the specification and ready for certification.
IO-Link Developer Kits – Smartly integrated with maximum performance
With IO-Link Developer Kits, the right solution for every development goal
Thanks to structured documentation and GUI tools, you can get started with IO-Link projects right away—without losing time on setup.
P-NUCLEO-IOM01M1
IO-Link master with IO-Link v1.1 PHY and stack
STEVAL-BFA001V2B
Multi-sensor predictive maintenance kit with IO-Link stack v.1.1
MAXREFDES281
IO-Link Device Demo
MAXREFDES145
8-Port IO-Link Master
STEVAL-IDP003V1
IO-Link industrial modular sensor board
RA2E1
IO-Link Pressure Sensor Solution Demonstration Kit

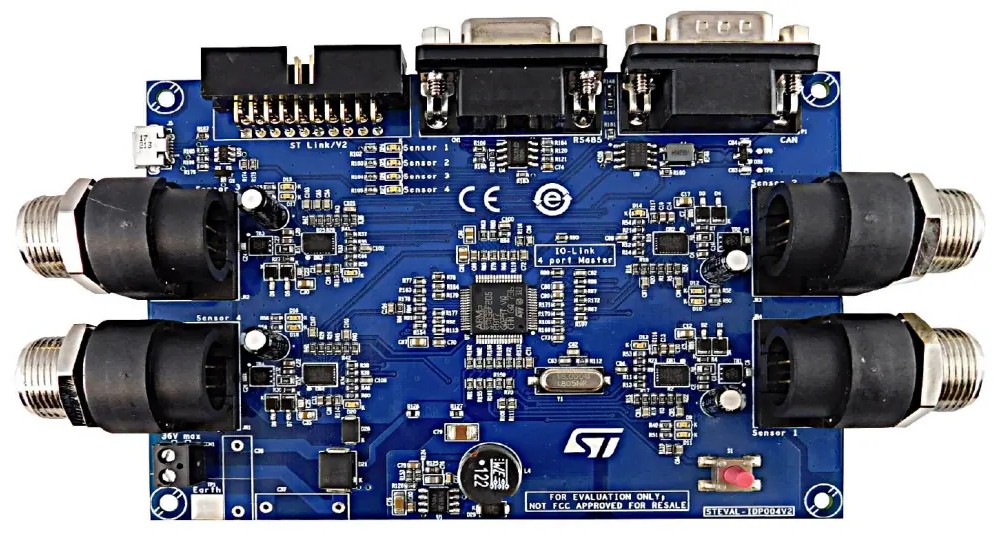

STEVAL-IDP004V2
IO-Link master multi-port evaluation board based on L6360

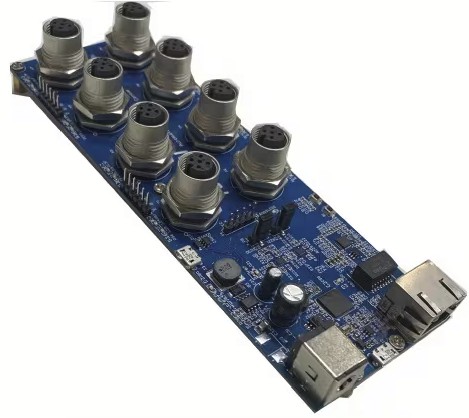

STDES-8PIOLM4P
8-port IO-Link master based on IOLM4P L6360

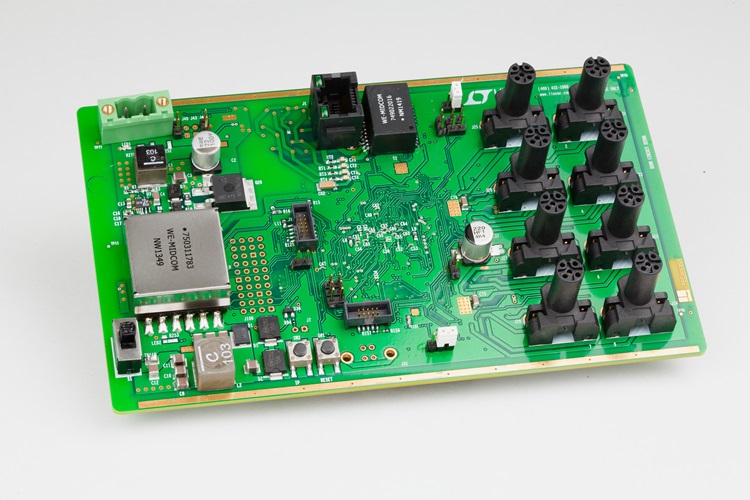

DC2228A
8-Port IO-Link Master Reference Design
IO-Link Master Module
Unsere IO-Link Master Module bieten eine effiziente Lösung, um IO-Link-Geräte ohne den Umweg über eine klassische SPS direkt in Ihre Systeme einzubinden. Die kompakten Module sind speziell dafür entwickelt, als fertige PCB-Einheit direkt auf bestehende Kundenplatinen aufgesteckt zu werden. Dies reduziert nicht nur den Entwicklungsaufwand und die damit verbundenen Kosten erheblich, sondern verkürzt auch die Zeit bis zur Markteinführung (Time-to-Market) entscheidend.
1-Port Master Module
On a minimal footprint of just 43 mm x 33 mm, this module offers an integrated transceiver as well as a full-featured V1.1.4 Master Stack. Communication with your hardware is straightforward via simple telegrams using SPI or UART interfaces. An integrated USB port for the TEConcept Control Tool is also available for easy offline configuration.
4-Port Master Module
For more comprehensive requirements, this module provides four fully tested, IO-Link-compliant ports on 59 mm x 39 mm. It enables direct access to process data and diagnostic information from up to four devices simultaneously. Optionally, we offer custom adaptations of the application software for this module to implement cost-effective stand-alone systems in the form of a mini-PLC.
Still have questions about the IO-Link Developer Kits?
If you cannot find a specific document or need a particular version (e.g., older firmware documentation), please contact our team directly.
Why should you rely on the featured IO-Link Developer Kits?
Partners of our IO-Link Developer Kits
FAQ on IO-Link Developer Kits
Which IO-Link version do the IO-Link Developer Kits support?
All reference designs are fully compliant with IO-Link v1.1—including test report.
How do the master boards differ?
DC2228A offers 8 ports, Ethernet & PoE—ideal for lab & production. MAXREFDES79 is compact, USB-based & portable.
Are there open sample projects?
Yes, including for ATmega MCUs, UART communication, and device mapping via CQ1.
Which software is included?
The TEConcept Control Tool (GUI), diagnostic functions, IODD import, and firmware update tools.
Can additional IO-Link devices be integrated?
Of course. All kits are open, compatible, and prepared for system integration.
