IO-Link Configurable Observable Device – Device emulation for developing IO-Link Masters and IO-Link Devices
When developing IO-Link Masters, there is often a strong need to test various edge cases. For example, how the IO-Link Master behaves with the largest data storage sizes, or how it reacts when the IO-Link Device does not respond or responds with a delay. The IO-Link Configurable Observable Device (COD) offers a wide range of options to extend regular protocol tests with customer-specific tests for IO-Link Masters. Furthermore, the COD can emulate any IO-Link Device based on its IODD.

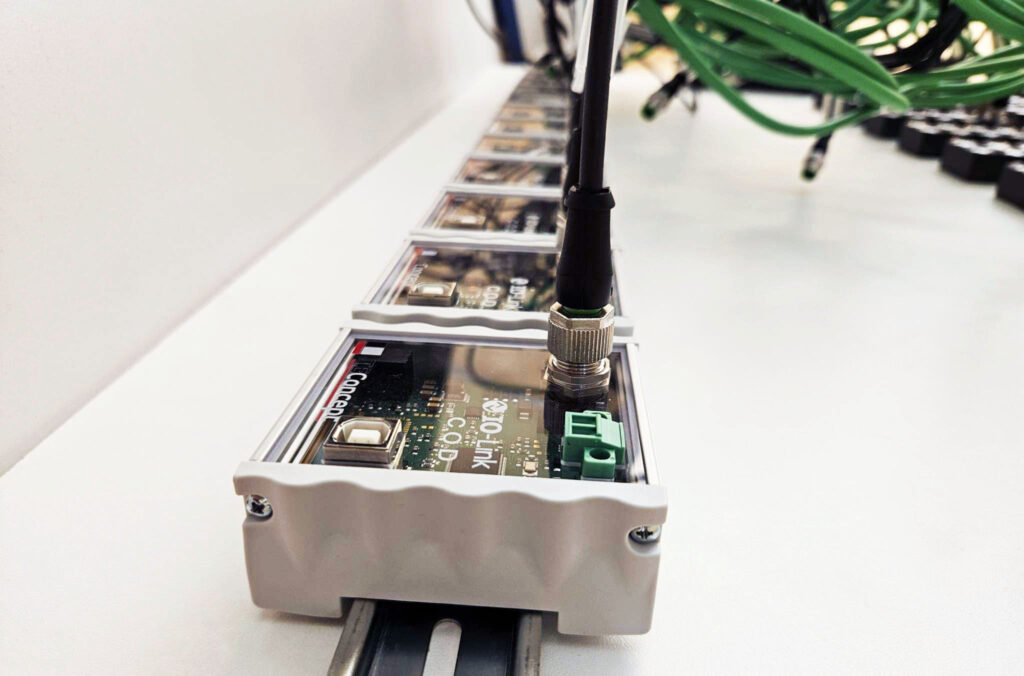

The COD is an IO-Link Device that can be configured and parameterized via REST API. The actual hardware communicates with the PC via USB. The REST API is provided by a PC-side server application called the COD Communication Server.
Can I test the IO-Link COD before buying?
Yes – we rent out the COD for 3 or 6 months. If you then decide to buy it, the rental fee is credited in full.
Features of the IO-Link Configurable Observable Device
- REST API for configuration and monitoring in automated test systems
- PC application for easy configuration
- Emulates IO-Link Devices using their IODD
- Fully configurable dynamic ISDU parameter management
with adjustable error generation for each index and subindex - Configurable DPP1 values (e.g., cycle time, process data,
manufacturer and device ID, etc.) - Event generation
- Process data mirroring and generation
- Monitoring of IO-Link communication and internal
device variables (e.g., startup sequence, data storage flags) - Error generation (e.g., emulation of a faulty device)
- Non-volatile memory for permanent storage of configured parameters
Configurable Observable Device Scope of Delivery
- 1 COD hardware unit
- PC configurator application
- COD Communication Server application
