1-Port Master Module
The IO-Link master module contains a complete IO-Link master and can be easily integrated into existing systems.
The IO-Link master module includes an IO-Link-compatible transceiver PHY together with a controller running a fully compliant IO-Link master stack. The IO-Link master module can communicate with external hardware via SPI and/or UART interfaces. Simple telegrams sent via these interfaces enable control of the master and provide easy access to process data and IO-Link configuration and diagnostic functions.

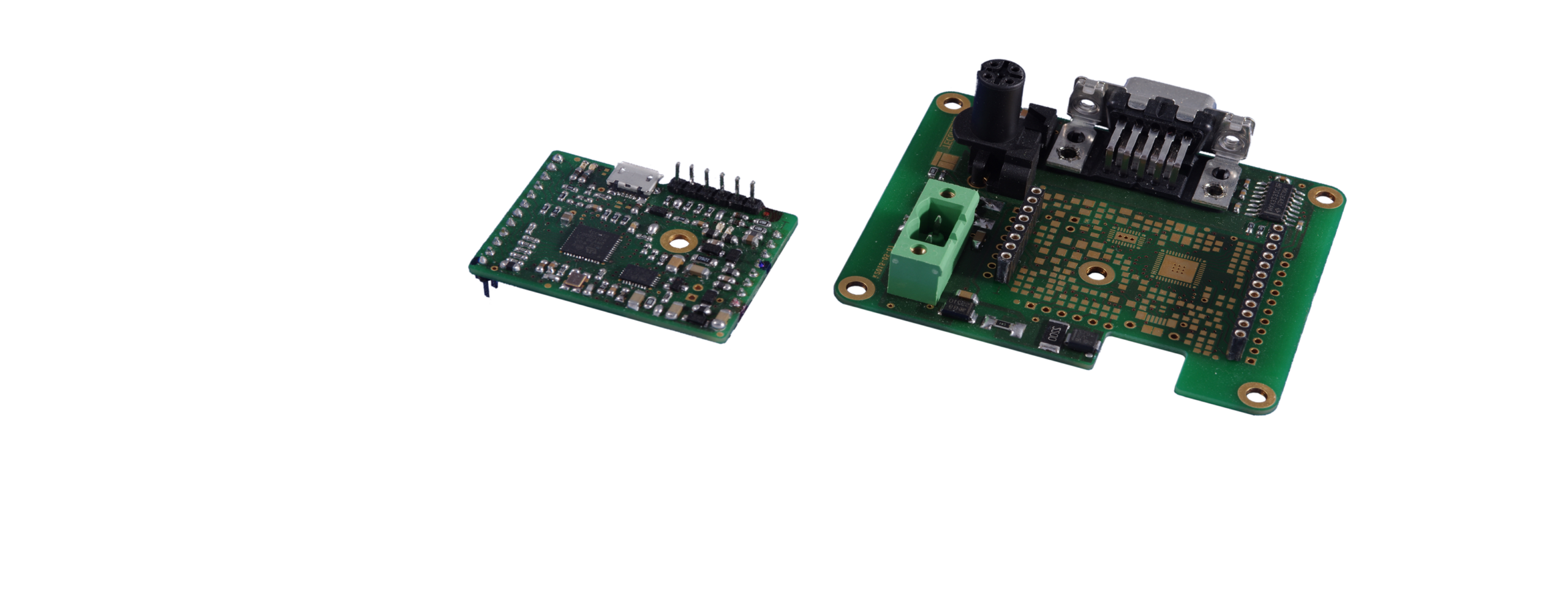

Device configuration can be performed offline via a PC using an integrated USB port, running a convenient and self-explanatory IO-Link control tool. The module can be plugged onto an existing board. A reference motherboard is available for development purposes.
1-port master module features
- Compatible with V1.1 IO-Link Specification
- IO-Link transceiver with integrated protection circuitry
- L+ supply voltage for device is switchable
- SPI / UART interface for easy master control
- USB interface for master control using the TEConcept PC control tool
- Dimensions: 43 mm x 33 mm
1-port master module basic board features
- 24V supply voltage connection
- DB-9 connector for serial interface
- Supply voltage generation for the IO-Link master module
- M12 IO-Link connector
Typical applications for the 1-port master module
Seamless integration of IO-Link devices into machine control without PLC.
Benefits of the 1-port master module
- Reduced development effort
- Compliant IO-Link Master Stack integrated into the module
- Easy control
